carton packaging machines

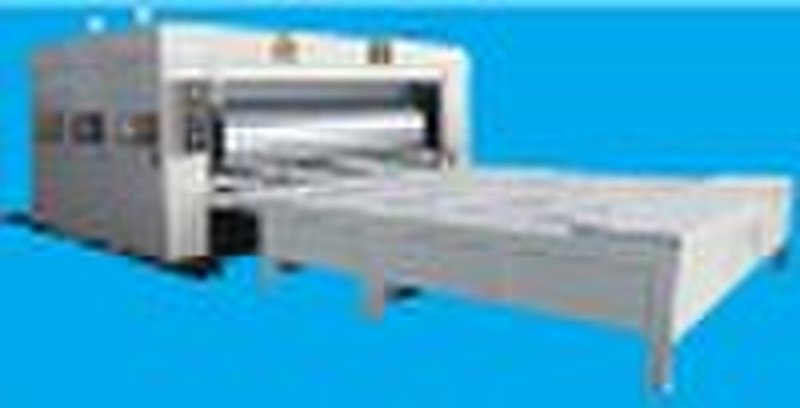

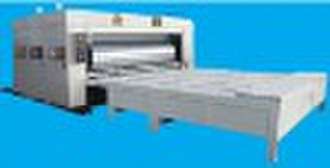

XT-LPrinting Slotting machine ,carton packaging machinesFunctions and Features: Chain feeding model can ensure that the bent board paper be smoothly sent due to the elastic pressing plate at the front of feeding system. Motorized detachment and combination; pneumatic locking and loosening of printing units; automatic ink distribution and pneumatic brake separation orientation; Printing and slotting phase is adjusted by planetary-gear electric phase, shown by digit. Whole machine uses the gear pumping automatic lubrication. Ink roller and printing pressing roller are connected by cross slide to ensure steady transmission. All axles and rollers are plated with rigid chrome and grinded surface. The whole machine adopts the electric parts from CHINT and DELIXI; Whole machine bearing is from the Harbine Bearing Group. Option of printing slitting and creasing or printing slotting.Main Parameter SERIALWYAZS NAMEUNITWYAZS2500×28001Inboard widthMm32002Max.coverage sizeMm2500×31003Min.coverage sizeMm600×5004Max.printing areaMm22450×28005Thickness of printing plateMm66Max.speedPieces/min507Power of main motorKw118Size for whole machineMm6000×4200×2500
